Overview

Thixomolding – Magnesiumspritzgießen

In the 1970s, the Massachusetts Institute of Technology (MIT) carried out research studies on metals in the thixotropic otropic state for the first time, which represented new territory in forming technology at the time. This groundbreaking technology was further developed in 1990 with magnesium and magnesium alloys. In 1991, the hydraulic and die casting equipment manufacturer HPM, which has been part of the Yizumi Group since 2011, was the first in the United States (USA) to license the patented technology and develop the first generation of Thix omolding machines. It was not until 1992 and 1997, respectively, that the Japanese company JSW and the Canadian company Husky introduced similar products.

In recent years, thixomolding technology has also been introduced in China. In 2009, Yiz umi developed the first Chinese thixomolding machine, which attracted considerable media attention. In the same year, the products of the MG series were approved on the Chinese market. In 2014, Yizumi was one of the leading companies to develop the worldwide industry standards for the Thixomolding

Machine. In 2015, the new generation MGII Thix omolding machine from Yizumi was developed on the platform of a UN650MGII, which involved a comprehensive improvement of individual machine assemblies based on the latest state of the art, bringing them up to the same level as the latest cutting-edge technologies from Japan.

The market launch of the MGII series took place in the same year 2015. In 2018 the model of an MGII with a clamping force of 1,250 tons (UN1250MGII) and an increased injection volume of up to 2.5 kg was developed within the framework of the technical cooperation between Yizumi China and Yizumi Germany. This machine sets new standards worldwide and opens up new possibilities for the production of magnesium injection moulded parts. In 2019, a hot runner technology for processing magnesium alloys that can be integrated into injection moulds was developed and successfully used in a Tixomolding mould of a German customer to produce high-quality footboards for an electric scooter.

Screw extrusion

Yizumi masters the two core technologies of thixomolding technology, high-speed injection control with injection speeds of up to 5,000mm/sec and the manufacture of injection units for processing magnesium alloys. A large number of inventions and new patents were created as part of these developments.

Yizumi’s successful development of a thixomolding machine with a clamping force of 1,250 tons (12,500 kN) and a shot weight of up to 2.8 kg sets a new standard in the industry.

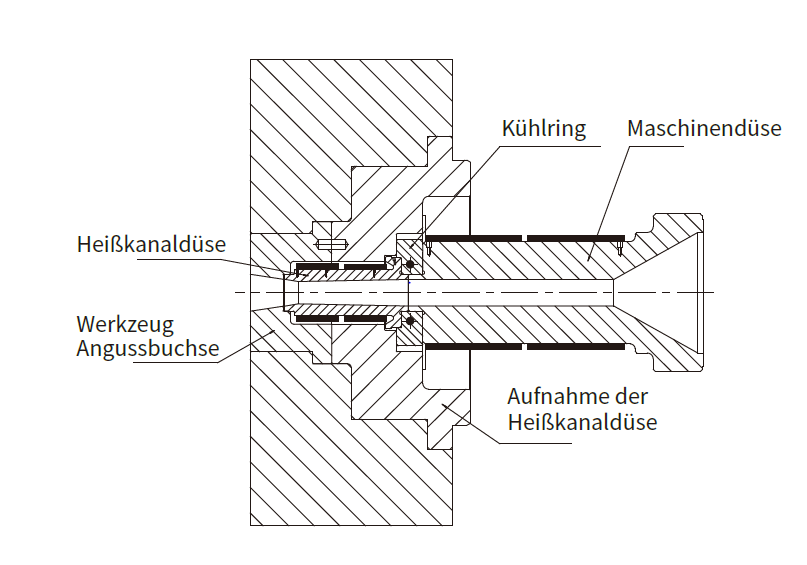

Hot runner technology

With the Yizumi hot runner technology, the magnesium alloy in the field of Injection directly into the moulded part by continuous heat input in the thixotropic or pasty melt state. The hot runner system is indirectly an extension of the Machine nozzle down to the surface of the moulded part. This means that the overhang is magnesium material in the area of the injection point is very low and therefore a separation of the
Furthermore, if a separation of the sprue is necessary, the sprue must be removed. This sprue is very short or small, which results in a small waste of valuable Magnesium means. Since the recycling of magnesium is very costly, it is not possible to hot runner technology minimizes the use of raw materials per molded part, as well as the heating up before the next injection process the high demands made on the Therefore, this technology is particularly suitable for the production of Mass production of magnesium mouldings.

Clamping unit

High speed toggle technology for fast opening and closing of the mould, as well as for precise, even and fast build-up of clamping force or introduction into the machine platen by the technology proven in hundreds of applications and patented by Yizumi, offers excellent performance and high reliability in production.

Control system

High-speed Control

The 10.4-inch touch screen and 500MHz controller facilitate operation and high-speed control via Ethernet.

Intelligent and Human-centered

Modular design of the control system facilitates the extension of functions. Ethernet interface is available as a standard feature for the purpose of information exchange with other equipment and data management software.

 Convenient and Easy to Use

All parameters of the molding process can be set on the quick setup screen.

Real-time Control

Parameters of the machine are clearly displayed and monitored on the screen in real time.

Machines absolute

Z

Machines per year

Product line

f

Clients

Thixomolding

Product variants

Thixomolding machine

650 tons

Thixomolding machine

1.250 tons

Video

FAQ

Questions & Answers

1. is thixomolding dependent on a melting furnace and a conveyor?

No. Thixomolding is a process in which the magnesium alloy in the form of chips or granules in the solid state can be fed automatically and continuously directly to the machine by means of a suction conveyor. The raw material is melted by the screw conveyor by friction and by the heating elements mounted on the plasticizing cylinder. This means that no additional melting and holding furnace is required for the magnesium. Nor is a linear device with a scoop container, which is known from die-cast aluminium, required.

Translated with www.DeepL.com/Translator

2. are the screw and barrel of a thixomolding machine identical to those of an injection moulding machine?

They basically work the same way. However, since thixomolding requires a higher temperature (up to 630 °C), the screw and barrel of a thixomolding machine are made of a special high-temperature resistant metal alloy.

3. what is the difference between thixomolding and powder metallurgy?

In powder metallurgy, a normal injection moulding machine is used and temperatures in the plastics processing sector are used, since only the plastic portion of the starting material is melted and the metal remains in the solid state as a suspension within the plastic.

4. can a thixomolding machine produce aluminium alloy parts?

A technology to produce with a screw and a barrel that are suitable for processing semi-solid aluminum alloys has not yet been developed. Aluminium alloys are currently not suitable for thixomolding.
